MS Square Bars

IS 2062

Multi Star Exim / Products / Long Steel

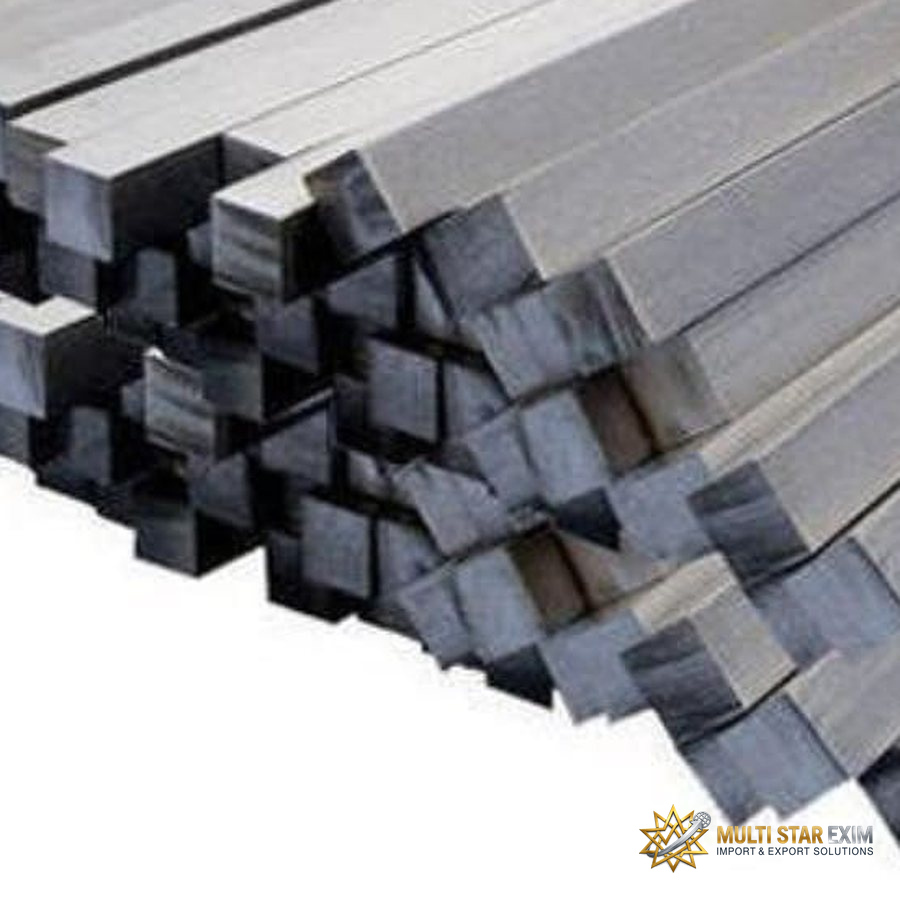

MS Square Bars

Mild steel square bars from 6mm to 75mm for fabrication, gates, grills and engineering.

Hot-rolled MS square bars (square rods) as per IS 2062, supplied in 5–7 metre lengths with customised lengths also available. Tested material, SAIL billet re-rolled material and branded material are available, with RITES inspection facility on request.

StandardIS 2062

Size Range6mm to 75mm

Length5–7 m / customised

InspectionMill TC · RITES on request

Request a Quote →View Rates

Sub-categories Weight Chart Chemical & Mechanical Rates & Terms

Tested MaterialMill TC with every lot; third-party testing on request.
SAIL Billet Re-rolledRe-rolled from SAIL billets for consistent chemistry.
RITES InspectionRITES inspection facility available for project orders.
Custom LengthsStandard 5–7 m; cut-to-length supply available.

Sub-Categories

Square bars by size band.

21 sizes from 6mm to 75mm, grouped by typical application.

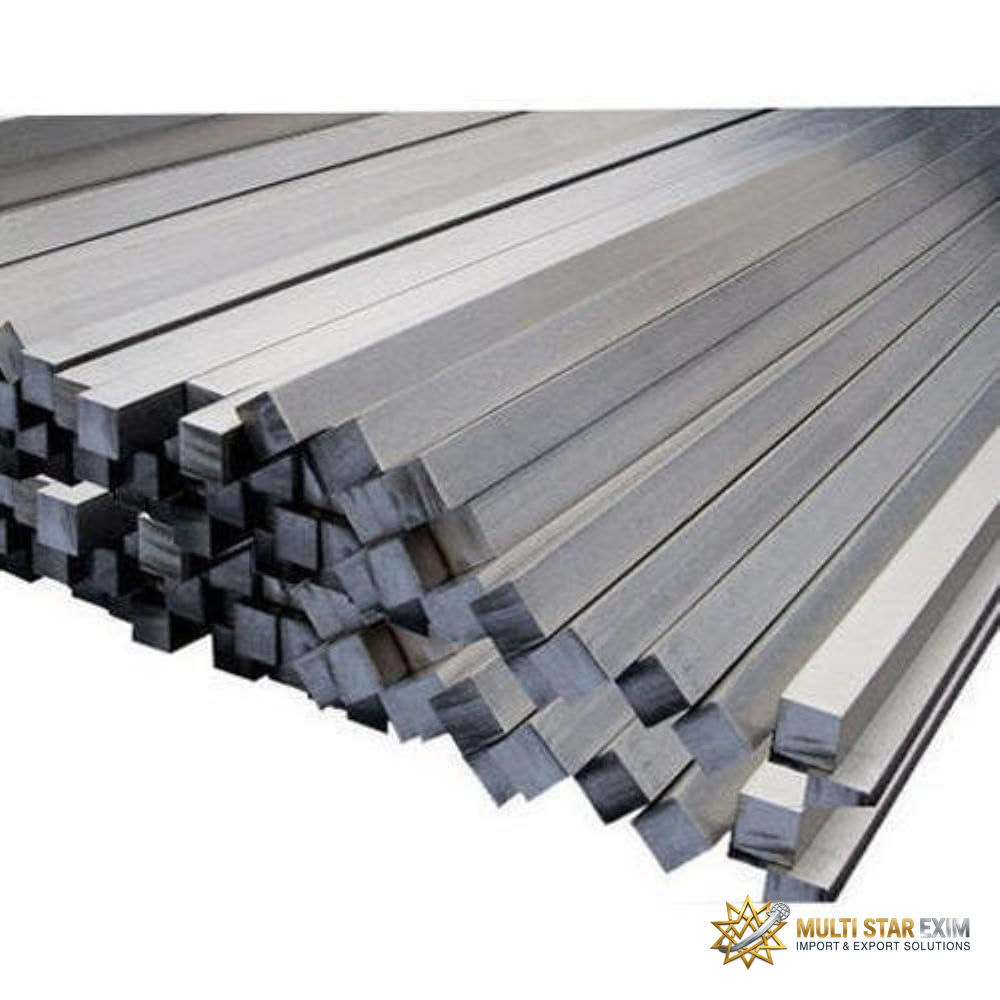

6 – 16 mm

Light Square Bars

Slim sections for window grills, railings, furniture and light fabrication.

Grills, gates & railings
Furniture & frames
Easy to cut and weld

6mm8mm10mm12mm16mm

View rates → Enquire

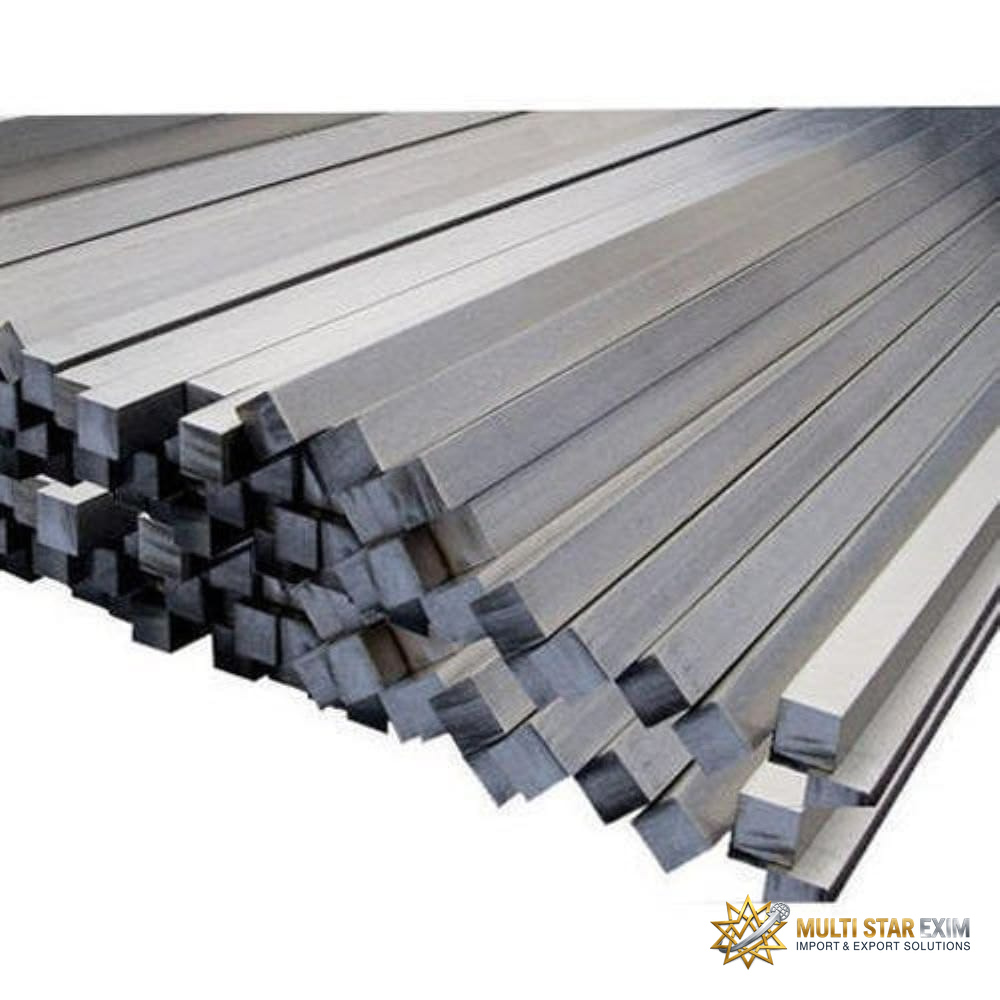

18 – 32 mm

Medium Square Bars

Versatile sections for structural fabrication, brackets and machinery frames.

Structural fabrication
Brackets & supports
Agricultural equipment

18mm20mm22mm25mm27mm32mm

View rates → Enquire

34 – 75 mm

Heavy Square Bars

Heavy sections for forging, machining, shafts and engineering components.

Forging & machining stock
Engineering components
Heavy industrial use

34mm36mm38mm40mm42mm45mm50mm52mm65mm75mm

View rates → Enquire

Technical Specification

Square bar details.

Standard, sizes, lengths and material options at a glance.

Parameter	Details
Product	MS Square Bar / Square Rod
Material	Mild Steel (hot rolled)
Standard	IS 2062
Sizes	6, 8, 10, 12, 16, 18, 20, 22, 25, 27, 32, 34, 36, 38, 40, 42, 45, 50, 52, 65, 75 mm
Length	5–7 metres (customised length material also available)
Material Options	Tested material · SAIL billet re-rolled material · Branded material
Inspection	Mill TC; RITES inspection facility available
Packaging	Bundles
Dispatch	Pan-India dispatch; export on request
HSN Code	72142090 / 72149990 (as applicable)

Weight Chart

MS square bar weight per metre.

Theoretical weights calculated as Side² × 0.00785 (kg per metre).

Item	Size	Wt / Metre (kg)	Wt / Foot (kg)	Wt / 6 m Pc (kg)	Pcs (6 m) in 1 MT	Running m in 1 MT
Square Bar	6mm	0.283	0.09	1.70	590	3539
Square Bar	8mm	0.502	0.15	3.01	332	1990
Square Bar	10mm	0.785	0.24	4.71	212	1274
Square Bar	12mm	1.130	0.34	6.78	147	885
Square Bar	16mm	2.010	0.61	12.06	83	498
Square Bar	18mm	2.543	0.78	15.26	66	393
Square Bar	20mm	3.140	0.96	18.84	53	318
Square Bar	22mm	3.799	1.16	22.80	44	263
Square Bar	25mm	4.906	1.50	29.44	34	204
Square Bar	27mm	5.723	1.74	34.34	29	175
Square Bar	32mm	8.038	2.45	48.23	21	124
Square Bar	34mm	9.075	2.77	54.45	18	110
Square Bar	36mm	10.174	3.10	61.04	16	98
Square Bar	38mm	11.335	3.46	68.01	15	88
Square Bar	40mm	12.560	3.83	75.36	13	80
Square Bar	42mm	13.847	4.22	83.08	12	72
Square Bar	45mm	15.896	4.85	95.38	10	63
Square Bar	50mm	19.625	5.98	117.75	8	51
Square Bar	52mm	21.226	6.47	127.36	8	47
Square Bar	65mm	33.166	10.11	199.00	5	30
Square Bar	75mm	44.156	13.46	264.94	4	23

Tolerance on weight per metre: ±7% up to 10mm, ±5% for 10mm to 16mm, ±3% above 16mm.

Chemical & Mechanical

Composition & properties.

MS square bar chemical composition (in % max values) and mechanical properties.

Chemical Composition

% max values

Carbon %	Manganese %	Sulphur %	Phosphorus %
0.21	0.86	0.04	0.037

Mechanical Properties

Reference values

Property	Value (IS 2062 E250, typical)
Yield Strength	250 MPa (min)
Tensile Strength	410 MPa (min)
Elongation	23% (min)

Today's Square Bar Rates

Price list & terms.

Prices change with the market — tap “Get Rate” for today's confirmed price.

MS Square Bar Price List

· Per ton, ex-works

Item Name	Size	Price	Unit	Price Movement	Enquiry

Terms & Conditions

Rates are ex-works / ex-dispatch location as confirmed at the time of order.
GST @ 18% will be charged extra.
Loading charges per MT will be charged extra, as applicable at the dispatch point.
Transit insurance will be charged extra (per ton).
Transportation / freight costs will be charged extra.
Payment: 100% advance along with the order.
Dispatch within 1–7 working days from receipt of advance.
Material conforms to IS 2062 standard.
Length of material is 5–7 metres (customised lengths also available).
Mill Test Certificate (Mill TC) can be provided; tested material available.
Weight tolerance per metre: +/- 7% up to 10mm, +/- 5% for 10mm to 16mm, +/- 3% above 16mm.
Actual dispatch quantity may differ by +/- 10%.
Rates are subject to the minimum order quantity (MOQ) and hourly market changes.
Rates prevailing at the time of receipt of advance will be final.
Products are subject to availability; rates are indicative — kindly reconfirm before ordering.
